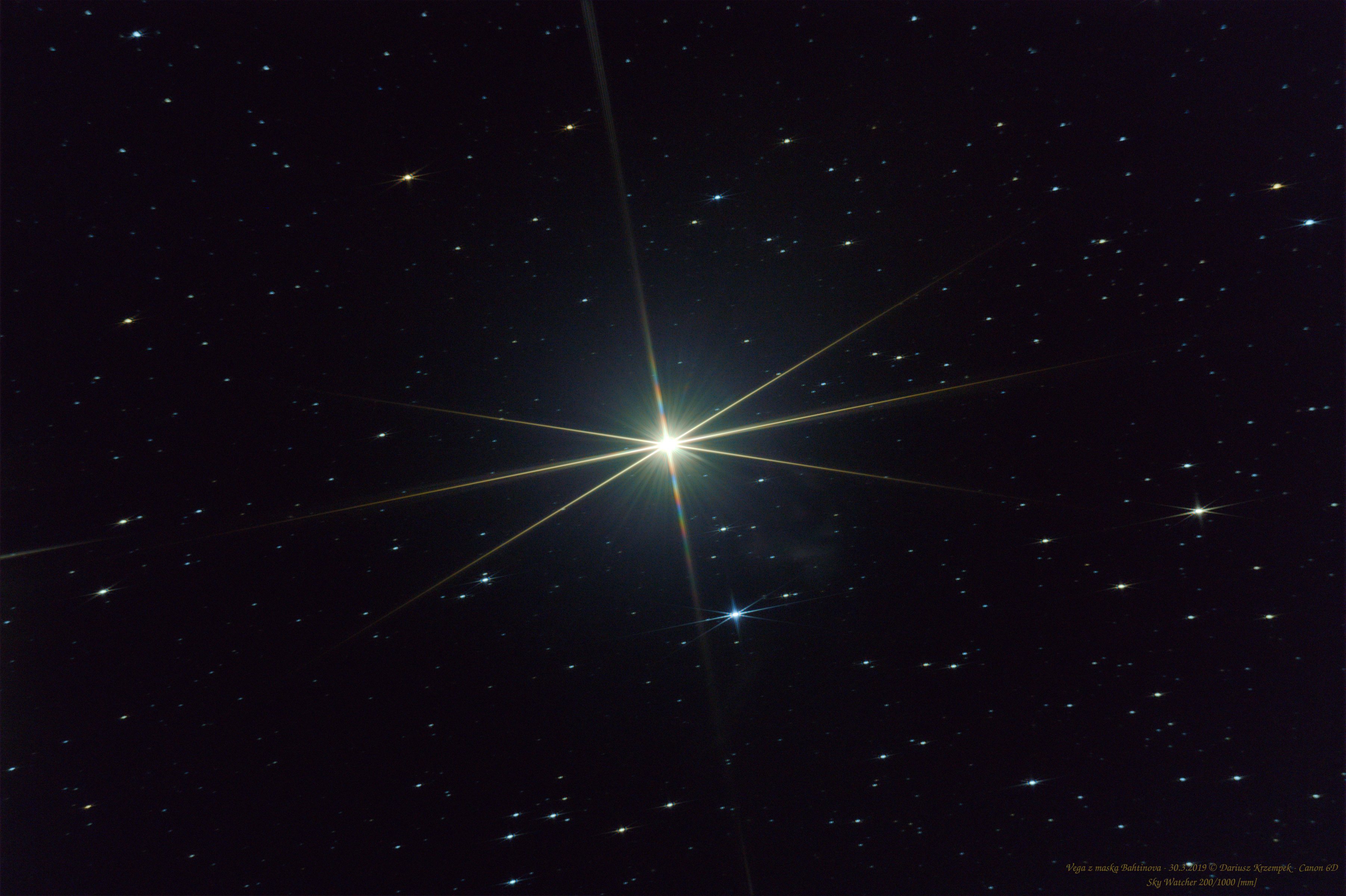

Example of correct focusing of optics attached to a camera.
Photos: March 2019
-
Astro Pixel Processor (APP): Used for calibration (applying darks, biases, flats) and stacking the 6 best frames.
-
Processing: GIMP v2.10.14 + plugins (Linux), basic post-processing tasks – levels/curves adjustment, noise reduction, and sharpening (unsharp mask).
-
Lights: 6 × 57 s at ISO 1600; 30 March 2019
-
Flats: 21 at ISO 1600; 02 August 2019
-
Biases: 20 at ISO 1600; 02 August 2019
-
Darks: 80 at ISO 1600; 30 March 2019
Basic Facts about Vega (Alpha Lyrae)
-
Constellation: Lyra
-
Brightness: one of the brightest stars in the night sky (second brightest in the northern hemisphere after Arcturus)
-
Distance: approximately 25 light-years from Earth
-
Spectral Type/Color: A0V; a massive, young, blue-white main-sequence star
-
Age: about 455 million years; significantly younger than the Sun
-
Special Features: hosts a circumstellar dust disk suggesting a forming or existing planetary system; also a rapid rotator
The Significance of Vega
Vega has enormous astronomical significance, primarily because of Earth’s axial precession.
-
Pole Star: The current Pole Star is Polaris. However, about 14,000 years ago Vega lay near the north celestial pole and served as the Pole Star. Due to precession, in roughly 12,000 years (around 14,000 AD), Vega will once again occupy this honored position.
Why Vega Is Ideal for Focusing
Vega, as a bright blue-white star, is ideal for focusing with a Bahtinov mask for two main reasons:
- Extreme Brightness: The Bahtinov mask relies on light diffraction. The more light that reaches the sensor in a short time, the faster and clearer the characteristic diffraction pattern appears. As a very bright star, Vega minimizes the need for long exposures, enabling almost instantaneous focus verification.
- Spectral Type (Blue-White / Low Color Index): Stars with zero or negative color index are extremely hot and emit light at shorter wavelengths, close to white or blue. This matters because:
-
-
It helps minimize the impact of chromatic aberration (the splitting of light into different colors by lens elements).
-
The diffraction pattern is higher in contrast and more consistent across the visual band, allowing more precise and unambiguous determination of perfect focus.
-
Operating Principle of the Bahtinov Mask
The Bahtinov mask is one of the most effective tools for manually achieving precise focus in astrophotography.
The mask is an attachment placed over the front of a telescope or camera lens. Its cut-out pattern consists of three sets of parallel slits, each oriented at a different angle.
When light from a bright star (such as Vega) passes through these slits, it undergoes diffraction, producing on the image or focus-preview screen a characteristic three-armed pattern:
-
Two slit sets generate two oblique, intersecting light bands that form an “X” shape.
-
The third slit set produces a central band that is perpendicular to the optical axis.
Indicating Ideal Focus
The key to using the mask is observing the position of the central diffraction spike relative to the outer spikes:
-
Out of focus: the central spike is shifted—positioned to one side of where the outer spikes intersect.
-
Perfect focus: by adjusting the focuser, aim for the moment when the central spike aligns exactly and crosses at the midpoint of the outer spikes, creating a perfectly symmetrical, three-armed pattern (resembling a “snowflake”).
My own experience using various Bahtinov and TriBahtinov masks indicates that the mask’s craftsmanship also has a direct impact on focus adjustment. A poorly made mask can adversely affect the focusing process. I have learned how to correct these “minor” mask errors… My “method/procedure” will be described and made available on this page in a dedicated article.
